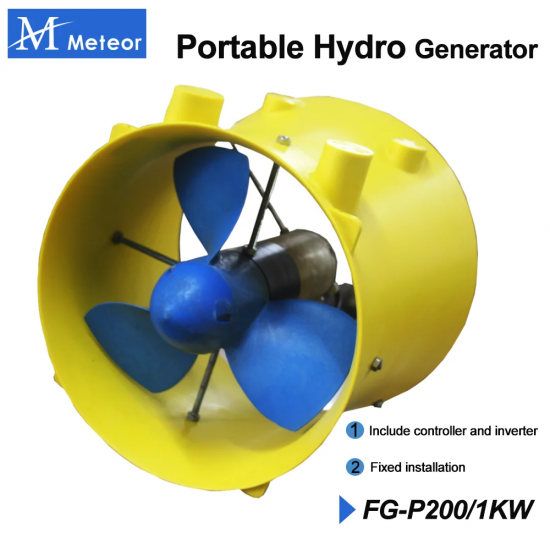

12V 200W Hydraulic generator portable power generators Electricity for 220V home appliances 1000W inverter generator water turbine

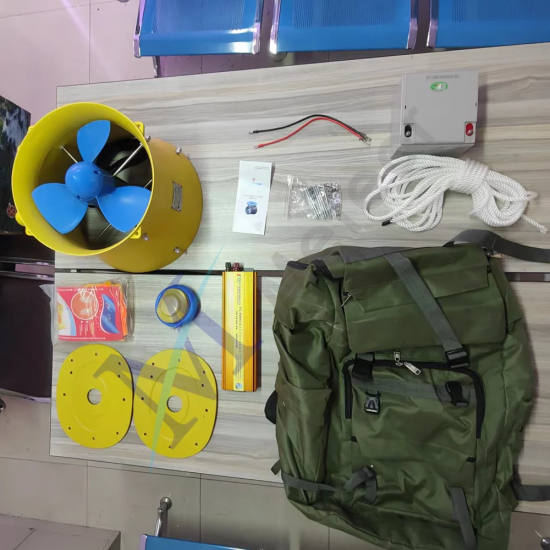

Packing List:
PACKING SIZE:48x47x52cm /23kg
Packing List:
Hydro Generator--1pc
Controller inverter all-in-one machine-1pc
Product Overview:
Floating tube hydroelectric generator is the latest horizontal flow hydroelectric generator that directly utilizes natural water flow power such as ditches, creeks, rivers, and ocean currents without the need for water interception and dam construction. It accelerates the natural water flow speed into the turbine through a speed increasing device installed in the water flow, impacts the turbine, drives the generator, and emits high-efficiency electricity. Due to the doubling of the water flow rate inside the machine, the water and electricity conversion capacity has been greatly improved, which not only significantly reduces manufacturing costs and improves overall cost-effectiveness, but also enriches the available water resources.
Its comprehensive cost-effectiveness, availability of hydraulic resources, and wide practicality are advantages that make it incomparable to the ancient bracket type water wheel type horizontal flow water generator, which only uses the original flow state of horizontal flow to generate electricity and semi floats on the water surface.
The emergence of floating tube hydroelectric generators has enabled efficient power generation from hydraulic resources that are difficult to utilize solely through traditional technologies; The gradual scarcity of hydraulic resources due to traditional utilization methods and the increasingly prominent environmental disputes will no longer hinder the development of hydropower industry. It is another clean energy source after wind and photovoltaic power generation. Its widespread use will provide the world with a new form of energy choice.
SUPER LOW HEAD/FLOATING HYDRO-ELECTRIC GENERATOR (FHEG)
The latest hydraulic electricity generator working on/ in plane running water as it is, the Floating Hydro-Electric Generator(FHEG) does not need to build any dam for stopping water in order to generate waterpower, but taking direct use of ditchesbrooks, rivers, ocean currents, tides and other natural plane running water power, and by installing speed device in the waterspeeding up the natural water that runs into the machine for impacting turbine, so as to drive generator, FHEG, therefore inthis way, generates waterpower with a relatively higher efficiency. Due to the multiplication of water velocity within FHEGmaking the transformation capacity of hydropower enhance greatly, all of which not only reduce the cost of manufacturingFHEG remarkably, improving significantly the comprehensive cost-performance ratio, but also have the available waterresources become very abundant accordingly. The marvelous superiority of its comprehensive cost-performance ratioavailable water resources, a wide range of practical advantages, make it impossible to let the way of generating hydropoweiby only employing the state of raw flow velocity of flat water -- namely, the style of waterpower generated by a scaffoldingwaterwheel-like generator that is modeled after an antique and installed in the half of water surface - be able to comparewith the marvelous superiority of FHEG.

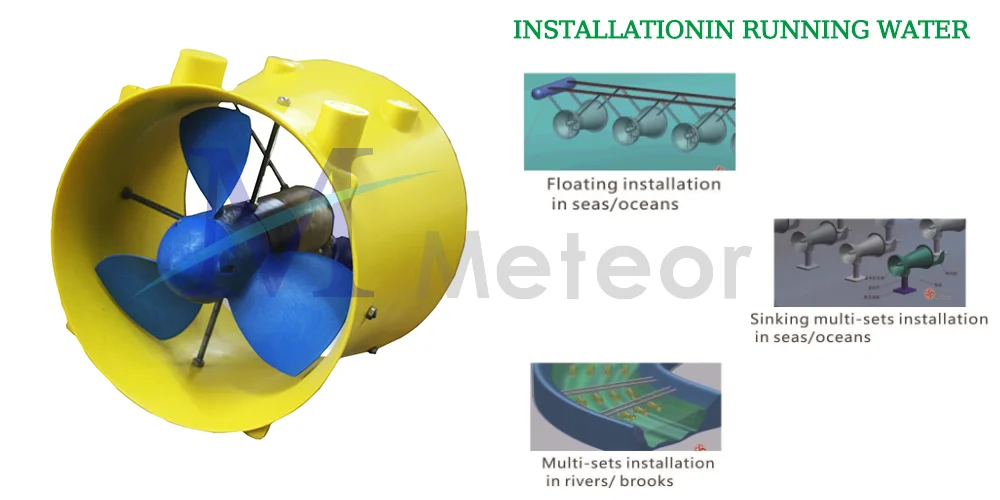

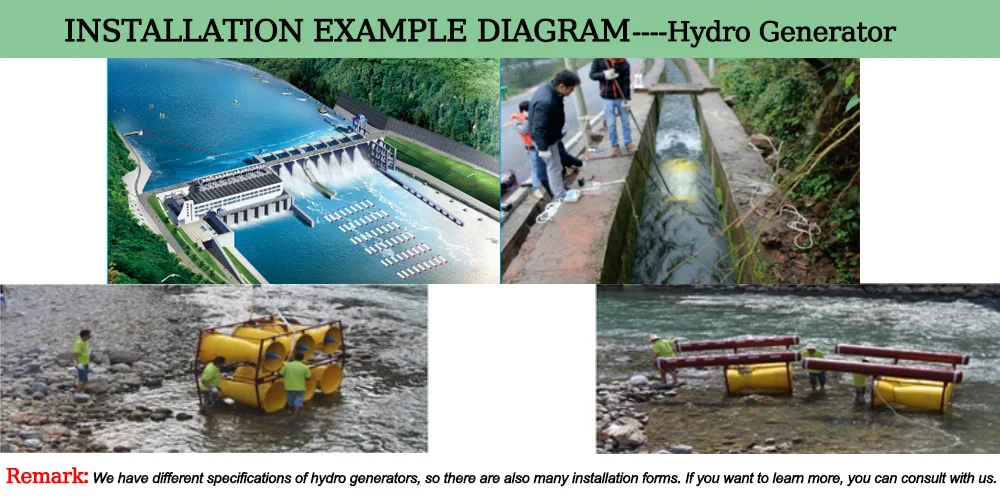

INSTALLATION AND MAINTENANCE
Regardless of the method of anchoring or pile driving, sufficient strength components must be used to firmly fix the floating tube hydroelectric generator. Iron chains, steel wire ropes, steel profiles, or a combination of several fixing materials can be used to achieve the fixation. Pay special attention! When the speed exceeds 2.7m/s, attention should be paid to flood prevention observation, protective measures should be taken to avoid the generator being washed away. Adhere to regular maintenance of floating tube hydroelectric generators, clean up garbage and suspended objects on the generator to avoid affecting its power generation. Maintenance should have dedicated personnel on duty and recording.
- Stock: In Stock
- Model: 12V 200W Hydraulic generator portable power generators Electrici
